Okay folks, let's talk Kerberos. Strap in. It'll be a long one. https://twitter.com/SteveSyfuhs/status/1305928453674340352

At it's core Kerberos is an authenticated key agreement protocol based on the Needham-Schroeder protocol.

We'll keep the crypto to a minimum because I'm kind of dumb, but here it is in it's most basic form. Wikipedia has everything you need on the crypto aspects of it. https://en.wikipedia.org/wiki/Needham%E2%80%93Schroeder_protocol

Anyway, the point of this key agreement protocol is so two different parties, A and B, can prove to one another that they have knowledge of the same key without leaking the key to the other party, all the while proving each party is who they say they are.

Why is this the basis for authentication? Because we don't actually care about how a user authenticated (I mean, we do, but...). What we really care about is the application communicating between client A and server B is doing so securely. This is done by using that key.

Remember, we're talking about a time long before SSL and TLS were invented, so this key is *the thing* securing all communications.

It turns out this agreement thing is incredibly difficult to do securely with just two parties (at scale, at least). So we introduce a third party C. Both A and B trust C, so C can act as a go-between for both parties.

If client A can authenticate to C, C can prove to B that A is actually A. Then, C can prove to A that B is actually B. This way A and B really don't need to know anything about each other, other than C says its all good. Let's build this into a protocol: Kerberos.

Okay, so we have our three parties: The client (user/human), the application (say SMB share), and the trusted third party (KDC).

The client knows it needs to talk to the application, so it begins by speaking to the KDC. The client and KDC don't implicitly trust each other, so they need to prove to one another that they are who they say they are. This is done by doing an authentication request (AS-REQ).

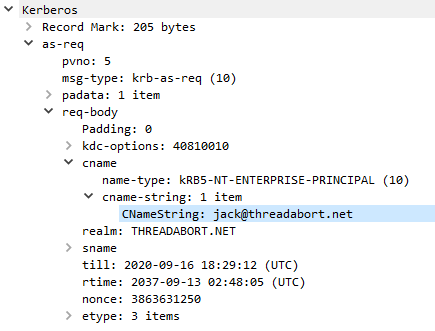

An AS-REQ is a message sent to the authentication service (AS). All the AS does is exchange credentials for tickets. These credentials can be anything, but are often passwords.

You'll notice there's nothing in there that includes any password information. That's because of the key agreement thing -- don't leak the key. The KDC happens to know the password, so generates a response (AS-REP).

The AS-REP includes two things: an encrypted ticket, and an encrypted client blob. The encrypted client blob is encrypted using the user password. The KDC has now proven to the client it is the KDC because only the KDC knows the password.

Within the blob is metadata about that other (double) encrypted thing-- the ticket. One other part the metadata is this thing called the session key. The session key encrypts the doubly-encrypted ticket.

The client decrypts this ticket and gets, well, not a lot -- another encrypted blob. That's okay though because the client has everything it needs to set up a session with application B now. This might be confusing because I'm leaving a flow out, but we'll get there. Trust me.

This opaque blob of a ticket was encrypted by the KDC to the target applications long term key -- it's password. The application knows the password so it can decrypt it, and since the KDC knew the password too, the application knows the KDC is the KDC.

Within the blob is a whole bunch of metadata, in fact the same metadata in the client blob. Including that same key.

Aha. So now client and the application know a key only they know (well, the KDC too, hold that thought though). This means the client and application can talk to each other securely! Woohoo!

Hold up you say! I'm missing a huge important piece -- the TGS-REQ. Yep, lets talk about that.

Remember how I said the only job of the AS-REQ is to exchange credentials for tickets? Well it's true. You can say AS-REQ => (creds, 'host/some-app') and the KDC will happily oblige. It turns out this is incredibly inefficient and possibly insecure though.

Credentials are super secret. We don't want them around all the time, and we do some heavy crypto with those creds before we can encrypt stuff to them, so that could just be resource intensive. So what do?

What we do is an AS-REQ and we ask for a special service ticket to a special service called the Ticket-Granting-Service (TSG), i.e. krbtgt. This solves both credential problems. How does a TGS-REQ work?

The TGS-REQ is almost identical to the AS-REQ. In fact the message structure is identical. The difference is that we include a special thing called pre-auth data, which is that encrypted ticket (plus goo, we'll get into it).

The TGS is almost always the same server as the AS, it just has a logically different purpose. The REQ message contains the name of the requested service (host/service.threadabort.net) in this case, plus the ticket granting ticket in the preauth-data.

The TGS receives this message and first checks the preauth-data, extracting that TGT. The TGT is encrypted to the krbtgt long term key -- it's password. Only the KDC knows the krbtgt password, so it knows its genuine and came from itself previously.

Once decrypted we now have that session key that only the client (and now TGS) knows. The KDC generates a response (REP) and instead of encrypting the client metadata to the client password, it encrypts it to the session key.

And so we're back to the client. The client receives the REP, decrypts the client metadata blob, and extracts the key. The key is used to decrypt the doubly-encrypted ticket blob, and voila the client now has a ticket and a key it can send to the application.

But we glossed over the sending-to-the-application part. It turns out this is partially undefined, that way the application protocol (say SMB) can include the ticket as they need it. Mostly, we have some housekeeping first though.

That housekeeping is the act of converting the encrypted ticket blob into an application request (AP-REQ). Why do this, and not just send the ticket? Well, the AP-REQ serves a few purposes. First, it provides a way to prevent message replay, and includes a way to switch up keys.

An AP-REQ is made up of two things: a ticket and an authenticator. We already know the ticket -- it's encrypted to the application long term key, and contains a special session key. The authenticator is special however.

The authenticator is encrypted with the ticket session key. The application should decrypt it because it includes additional metadata, like a sequence number.

This sequence number can be tracked by the application. If it sees the same number more than once it can treat it as a replay and kill the second attempt. See, each time a client kicks off a request it must generate a new AP-REQ, that way the application can prevent replay.

The other important bit of information in this authenticator is a sub-session key. This key is a special key that only the client (and now the application) know, so you can guarantee only the two parties know it without the KDC knowing it. Neat.

The application may or may not decide it wants to switch to the sub-session key. Regardless of that, it still needs to do one final thing: respond to the client with an AP-REP.

The AP-REP is mostly just an ACK. It contains a blob encrypted to the (sub-)session key, and this tells the client that the application is really who they say they are because it could decrypt the ticket issued by the KDC, and therefore the authenticator.

But then it has one last nugget: yet another sub-session key. It turns out the application may decide it wants to use a different key for whatever reason it wants. Now any future communications between client and application are encrypted using keys that can be authenticated.

BUT WAIT THERES MORE!

I go into great detail about how this all fits into the Windows logon process in this other thread, but maybe we can go a bit deeper? https://twitter.com/SteveSyfuhs/status/1297957799079510018

When a client, like Windows, decides it wants to do Kerberos it first needs find a KDC. There are a couple ways this can work.

The first is pretty straightforward: hardcode a list of KDCs. This is how many clients work. MIT Kerberos for instance supports this.

My Kerberos .NET ( http://kerberos.dev ) library also supports this using the same schema.

The other way is through DNS lookups. Many clients support this, but often as a secondary approach because DNS isn't entirely secure (at least it wasn't, at the time). This works by looking for an SRV record _kerberos._transport.realm.net. The results are KDCs.

Windows prefers another approach entirely because hardcoding doesn't scale well when you have thousands of DCs, and DNS doesn't include enough detail. What it does is something called DC location using the DC locator service.

The DC locator works by first querying DNS for some LDAP SRV records. These list all (K)DCs in the domain, and the locator goes through each record it finds and makes a UDP LDAP call to the server.

The server either responds immediately, or the request times out quickly and moves on to the next record. The locator checks each record for KDC info and tries to find one that's close enough based on IP subnet and the registered AD site.

As it narrows the list down it then looks to make sure the DC supports the things it needs. There's a couple dozen options to choose from: https://github.com/dotnet/Kerberos.NET/blob/0b83e6b2e4183e17daece5b3cf12187a929b1771/Kerberos.NET/Entities/Kkdcp/DcLocatorHint.cs and https://docs.microsoft.com/en-us/windows/win32/api/dsgetdc/nf-dsgetdc-dsgetdcnamea

Eventually it finds a DC that it likes and returns the address to the Kerberos stack.

Incidentally this functionality is why we can do amazing things with FAST, or Windows Hello, or FIDO and only require a handful of DCs running the latest bits instead of all of them. The client knows it needs a KDC that supports e.g. FIDO, so just it asks DC Locator for one.

However, suppose Windows isn't talking to an Active Directory domain. Maybe it's talking to an MIT or Heimdal KDC. They don't support DC Locator (well, probably don't?), so Windows will fall back to looking up the DNS SRV _kerberos records.

You'll notice I haven't said a thing about domain-joined vs workgroup vs AADJ vs whatever. This is by design because Windows doesn't give a crap about whether you're any of those (I mean, it does, but...). Windows is just another Kerberos client.

All Windows needs to make Kerberos work is have a user principal name, a credential, and a realm. It can guess about your realm based on your username. If I type [email protected] it's plausible my realm is http://THREADABORT.NET . At least, it's worth trying.

So Windows will DC locate threadabort .net: it'll jump down the LDAP rabbit hole, and then it'll move on the straight DNS, then it'll even try HTTP (we'll get to that in a bit).

Eventually it'll probably find KDC, and Windows will do the AS-REQ to get a krbtgt, then a TGS-REQ to the service in question. No domain-joined'ness involved.

So what does domain join do? First it configures your desktop authority. That means Windows will create a desktop and logon session for you if the configured domain gives you a ticket to itself. https://twitter.com/SteveSyfuhs/status/1297962798736015360

As it happens there's nothing inherently special about that last process, beyond knowing what knobs to turn. If you call all the correct APIs you too could create a logon session without being joined to that domain.

The second thing joining the domain does is it provides a bunch of hints to the Kerberos logon process. If my UPN is [email protected], and my realm is http://THREADABORT.NET , Windows can reason through that. It can't reason through it if my realm is http://CORP.THREADBORT.NET .

Domain join provides these hints to say that if it can't find the domain through its standard process, try the machine's configured domain. It's either the right one, or maybe it's a domain across a trust.

The third thing of course is kinda sorta related to the last one, but is more generically about policy: group policy. It's about management of the device from a centralized location.

And the inverse? An Active Directory realm with a Linux or Mac client? It pretty much works the same.

Have user, have cred, have realm.
Go find KDC for realm.
Do AS-REQ, TGS-REQ.
Connect to App.
Profit.

Where Windows differentiates itself here is the out-of-the-box capability to join the domain and be managed, and use the creds the user typed in to get to the desktop to make SSO magical behind the scenes.

Mac and Linux definitely have this capability, which can be configured through, say MDM. https://support.apple.com/en-gb/guide/mdm/mdm7a81f07b/web They kinda sorta work the same way. They start setting device defaults and optimistically using those values and creds.

But back to Windows. That covers domain join, which is starting to show its age. These days we have hybrid join, and AAD join. All of these do Kerberos to on-prem DCs.

In the hybrid case, you're still domain joined. Nothing special about that. AADJ is something else entirely though.

AADJ changes the desktop authority from your on-prem domain to Azure AD. It uses a different authentication provider (CloudAP instead of Kerberos). But it still does Kerberos with SSO. How?

Well, it's deceptively simple. Remember how I said Windows doesn't much care what domain state its in? If you give it a cred it'll just do Kerberos. AADJ works the same way. The difference is that when CloudAP gets a successful response back from AAD, it includes metadata.

That metadata includes useful information like your real realm name, and your fully qualified UPN. So even if I typed [email protected], it'll return [email protected]+ http://CORP.THREADABORT.NET . CloudAP hands this off the Kerberos, says have it, and does an AS-REQ.

The difference here is that Windows now doesn't care if the AS-REQ succeeds. It either did, and now it has a TGT to do SSO to on-prem stuff, or it doesn't. Either way it's at the desktop and you still have your cloud creds for SSO to AAD.

The move to the cloud puts you in an interesting predicament though. Half your stuff is in the cloud, and half your stuff is still on-prem. However, now you're out and about, or given the current state of things working from home because of a pandemic.

All the on-prem stuff isn't reeeeeally necessary for day-to-day work, so you don't set up a VPN and everything just kinda hums along while users access their email from the cloud using AAD on their hybrid joined device.

It's been 6 months and your password expired some time ago. You need to change it because stuff is starting to lock you out. The only way to change your password is through CTRL-ALT-DEL, but you need line of sight to a DC and you don't have a VPN ARRRRRGGG.

Sometime before 2012 Windows introduced this idea of KDC Proxy. The ability to tunnel KDC messages (AS/TGS/ChangePW) over an HTTP channel instead of requiring line of sight on port 88. https://syfuhs.net/kdc-proxy-for-remote-access

If configured, Windows will natively use HTTP(S) to proxy KDC messages. It's pretty cool. The way it works is also pretty simple. Windows is configured with a couple registry keys that map a realm to a proxy server.
