Use of hydroxychloroquine for #COVID19 has made QT prolongation topical
so how do we approach assessment of this in ED/acute care environment? #Tweetorial #ToxicTweetTale #QTprolongation

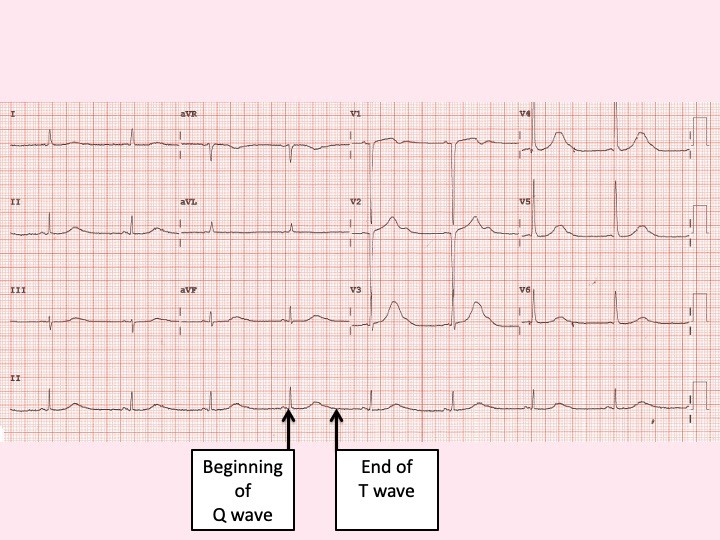

2.QT interval=beginning of q-wave to end of t-wave

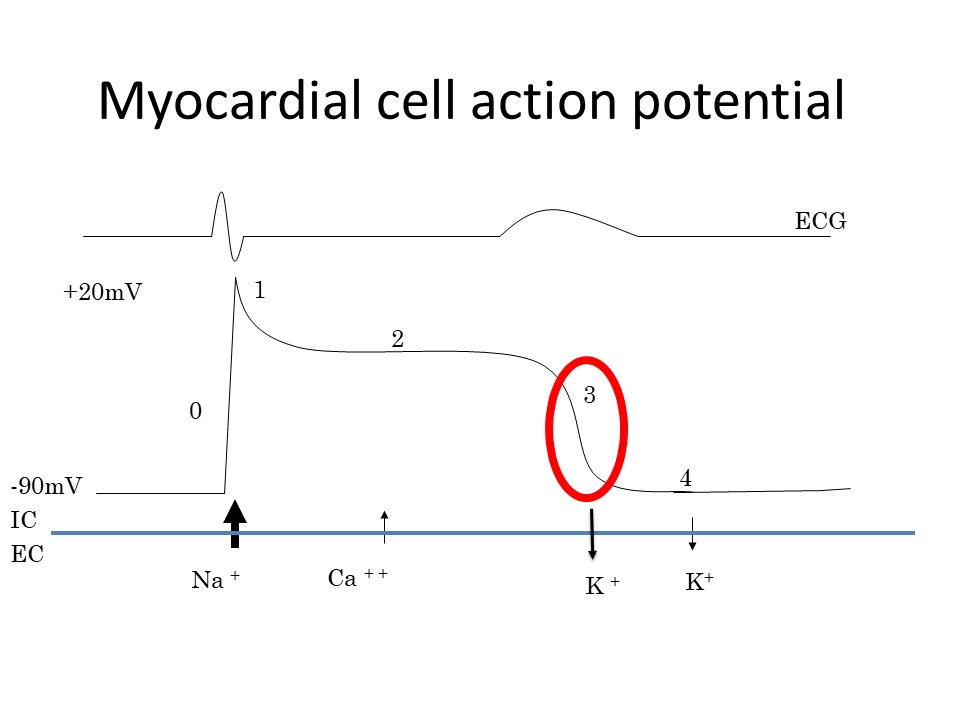

time taken for myocardial tissue to repolarise
phase 3 of the action potential
due to outward flow of K+ blockage of K+ channels by drugs/toxins can
K+ flow
prolongs phase 3
QT prolongation







3.Upward rises in voltage can -early after depolarisations-can occur during phase 3 if prolonged
potentially triggers ectopic beat
ventricular arrhythmia if sustained classically TdP more here https://pubmed.ncbi.nlm.nih.gov/14999113/


4. QT varies with heart rate
to standardise to 60 bpm machine calculates QTc,most common formula used is Bazzett’s BUT
only accurate over HRs of 50-80 bpm
underestimates QT at low heart rates AND
overestimates at higher heart rates




5.quetiapine is a common poisoning which rarely/never causes TdP but is known to prolong QTc in overdose
this is spurious and secondary to tachycardia from anticholinergic effects of quetiapine https://pubmed.ncbi.nlm.nih.gov/14634598

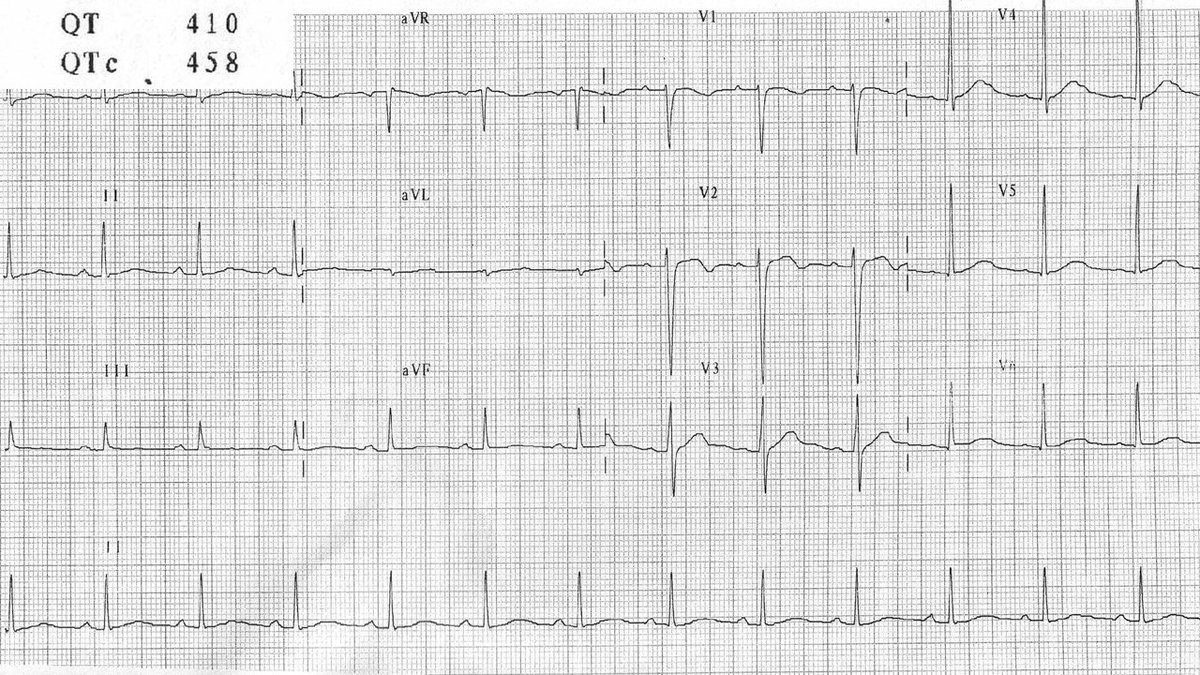

6.automatically calculated QT measures can also be inaccurate when t-wave flat
may not pick return to baseline accurately
underestimates QT interval, critical difference illustrated below


7.The QT nomogram outperforms QTc as a risk assessment tool and is the method of choice for assessing at risk QT for toxins, images below show nomogram and how to use https://pubmed.ncbi.nlm.nih.gov/17881416
8.This #FOAMTox review covers the topic well,image shows nomogram findings with specific drugs/poisonings
no/minimal risk for droperidol/quetiapine
much higher risk with amisulpride
known to be torsadogenic in overdose https://pubmed.ncbi.nlm.nih.gov/23167578



9. You may have heard of the half R-R rule…not recommended as a risk assessment tool
false +ve’s and false -ve’s
worst of both worlds, nicely illustrated in this study https://pubmed.ncbi.nlm.nih.gov/26375169


10. Management of long QT is another topic but in poisoning centres around correcting reversible causes eg low Mg2+,K+levels, stopping offending agent and cardiac monitoring until 12 lead ECG HR/QT pairs below nomogram risk line
