On the @ScarbsTech workbench a front left #F1 upright, off a 2009 Force India VJM02

thread....
This part connects the wheel, brake and suspension. The silver upright is machined Aluminium, the hub axle is Titanium. It weighs 3.2kg
This part connects the wheel, brake and suspension. The silver upright is machined Aluminium, the hub axle is Titanium. It weighs 3.2kg
This part connects the wheel, brake and suspension. The silver upright is machined Aluminium, the hub axle is Titanium. It weighs 3.2kg
This part connects the wheel, brake and suspension. The silver upright is machined Aluminium, the hub axle is Titanium. It weighs 3.2kg
This part connects the wheel, brake and suspension. The silver upright is machined Aluminium, the hub axle is Titanium. It weighs 3.2kg
Mountings as pointed out here

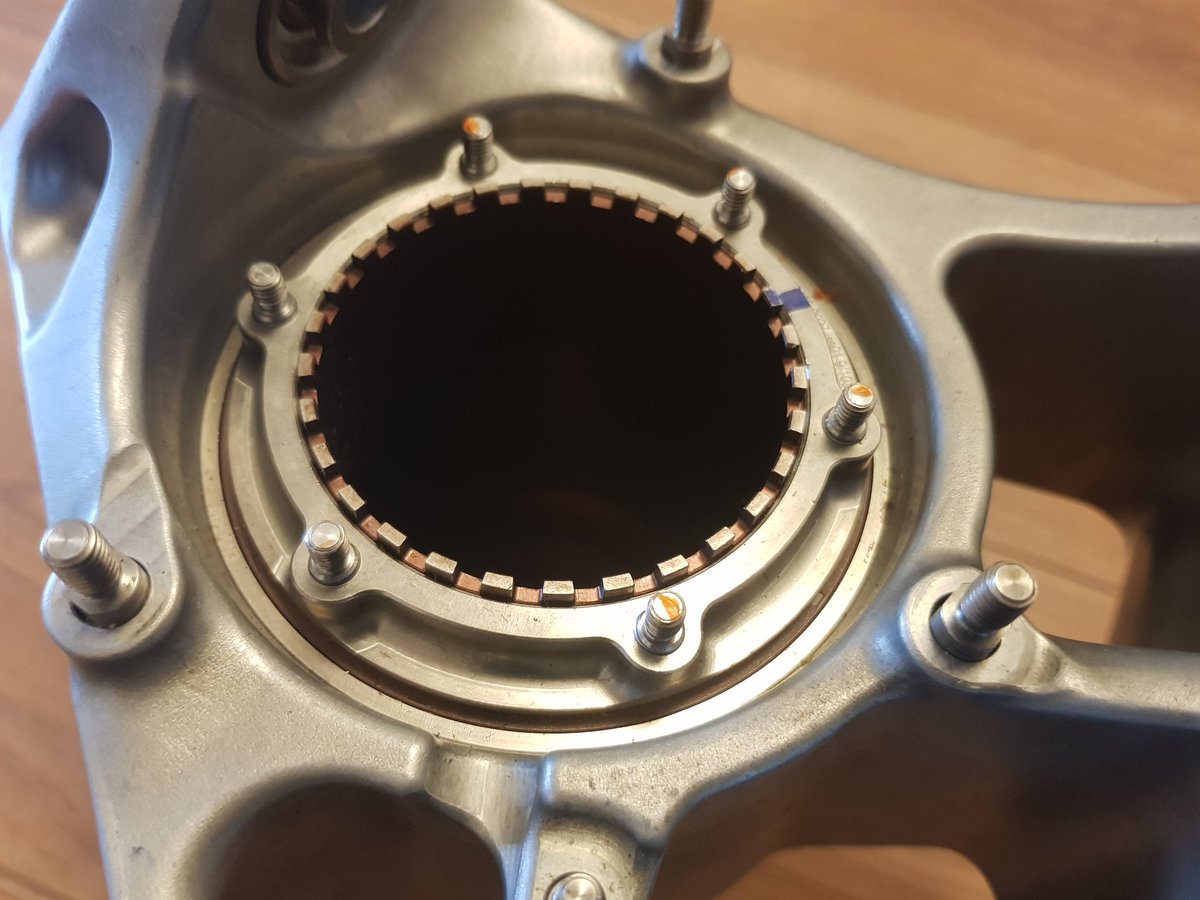

The hub is 180mm long, 130mm dia at its widest, with a min bore of 55mm dia. It sits in two SKF bearings
The hub is 180mm long, 130mm dia at its widest, with a min bore of 55mm dia. It sits in two SKF bearings
The hub is 180mm long, 130mm dia at its widest, with a min bore of 55mm dia. It sits in two SKF bearings
The hub is 180mm long, 130mm dia at its widest, with a min bore of 55mm dia. It sits in two SKF bearings
The hub is 180mm long, 130mm dia at its widest, with a min bore of 55mm dia. It sits in two SKF bearings
Being a 2009 car the hub is set up to support the non-spinning wheel fairing, the bracket is missing here and also supports the pushrod for a POU set up
Being a 2009 car the hub is set up to support the non-spinning wheel fairing, the bracket is missing here and also supports the pushrod for a POU set up
Being a 2009 car the hub is set up to support the non-spinning wheel fairing, the bracket is missing here and also supports the pushrod for a POU set up
Lower wishbone spherical bearing
Lower wishbone spherical bearing
Lower wishbone spherical bearing
Top wishbone and steering mounts. Note even the fasteners all have part numbers etched into them
Top wishbone and steering mounts. Note even the fasteners all have part numbers etched into them
Top wishbone and steering mounts. Note even the fasteners all have part numbers etched into them
Top wishbone and steering mounts. Note even the fasteners all have part numbers etched into them
Brake and wheel tether mounts
Brake and wheel tether mounts
Brake and wheel tether mounts
Brake and wheel tether mounts
Steering axis, without the POU bracket (?) I'm not sure of the offset geometry.
You can follow @ScarbsTech.
